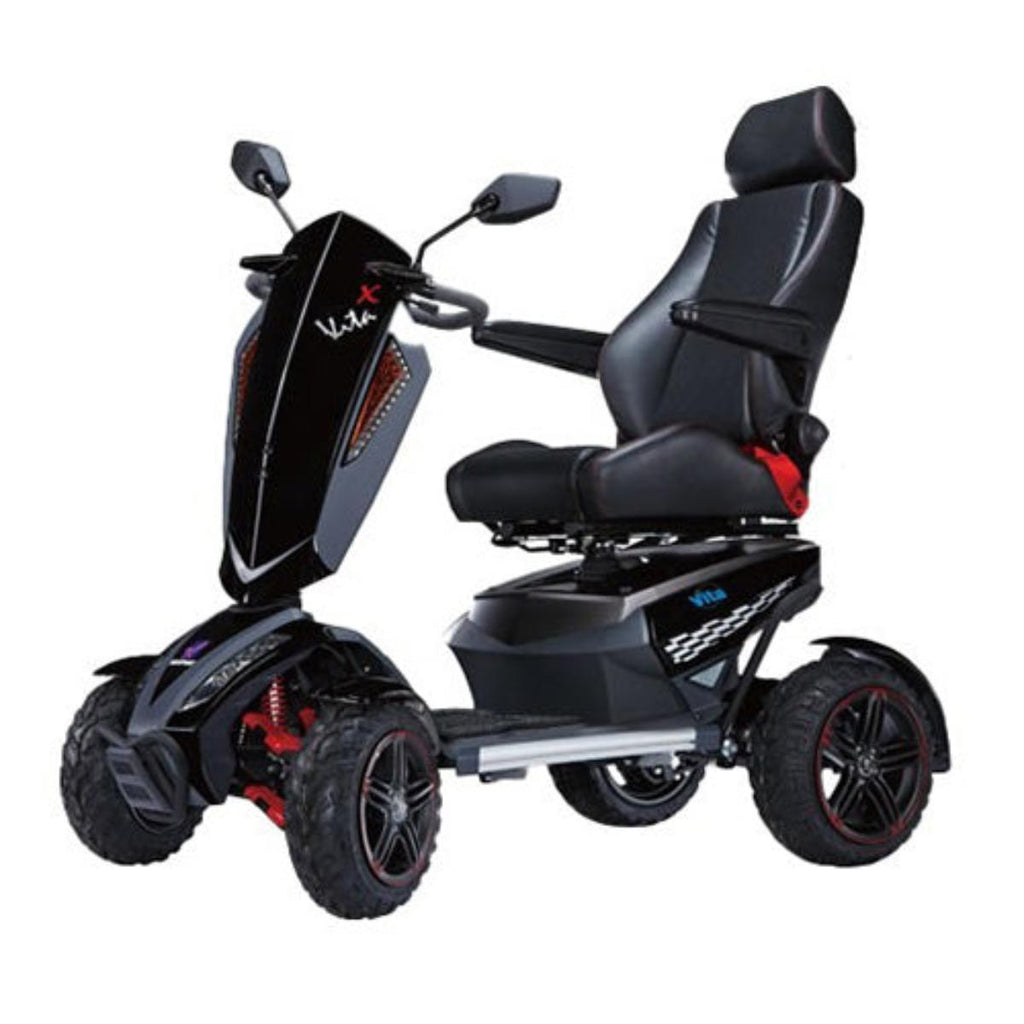

The Vita Monster S12X is an impressive and robust 4-wheel all-terrain mobility scooter.
This scooter's standout features include its impressive maximum travel distance of up to 45 km, its rugged design, and its large, elevated-tread knobby tyres enabling effortless manoeuvrability.
With its front and rear independent suspension, the Vita S12X provides a smooth ride regardless of the surface conditions. Powered by a robust 900-watt motor and boasting a remarkable 160 kg weight capacity, this scooter is an intelligent choice for those seeking a powerful and capable mobility solution.
- Rugged, unique design
- Large, high-profile tyres
- Sophisticated suspension system
- Comfortable adjustable seat
- Angle-adjustable tiller
- Up to 45km operation range
- Weight capacity: 160 kg
| ITEM |
SPECIFICATION |
| WEIGHT CAPACITY |
350 lbs. (159 kg) |
| DRIVE WHEEL |
15″ x 6.5″ (380mm x 160mm) |
| FRONT WHEEL |
13″ x 5″ (330mm x 127mm) |
| REAR CASTER (ANTI-TIPPER) |
None |
| MAX SPEED |
11.5 mph |
| BATTERY SPECIFICATIONS |
12V 75Ah (Group 24) |
| BATTERY RANGE |
up to 28 miles (45 km) ** |
| CHARGER TYPE |
8 Amp Off-Board Charger, 120/240 Volt |
| CONTROLLER TYPE |
S-Drive Controller 200A |
| MOTOR TYPE |
900W 4-Pole Motor, Transaxle Gear Ratio 25:1 |
| LENGTH |
63.77″ (1620 mm) |
| WIDTH |
31″ (790 mm) |
| WEIGHT: W/BATTERY |
330 lbs. (149 kg) |
| SUSPENSION |
Front: Independent Double A-Arm, Rear: 3D Suspension |
| TURNING RADIUS |
53.1″ (1350 mm) |
HEIGHT-
SEAT BASE TO FOOTPLATE |
18″ (height adjustable to 19″, 20″, 21″, 22″; tools required) |
HEIGHT-
FOOTPLATE TO GROUND |
9″ |
| STANDARD SEAT SIZE |
20″W SPORT SEAT |
| OPTIONAL SEAT— |
22″/24″ seat width |
| GROUND CLEARANCE |
3.9″ |
